Energy Solutions

EMPOWERING INDUSTRY
WITH STORED HEAT

Flexible energy storage for lower costs, resilient operations and a cleaner energy future.

TAI Dynamics Energy Solutions System

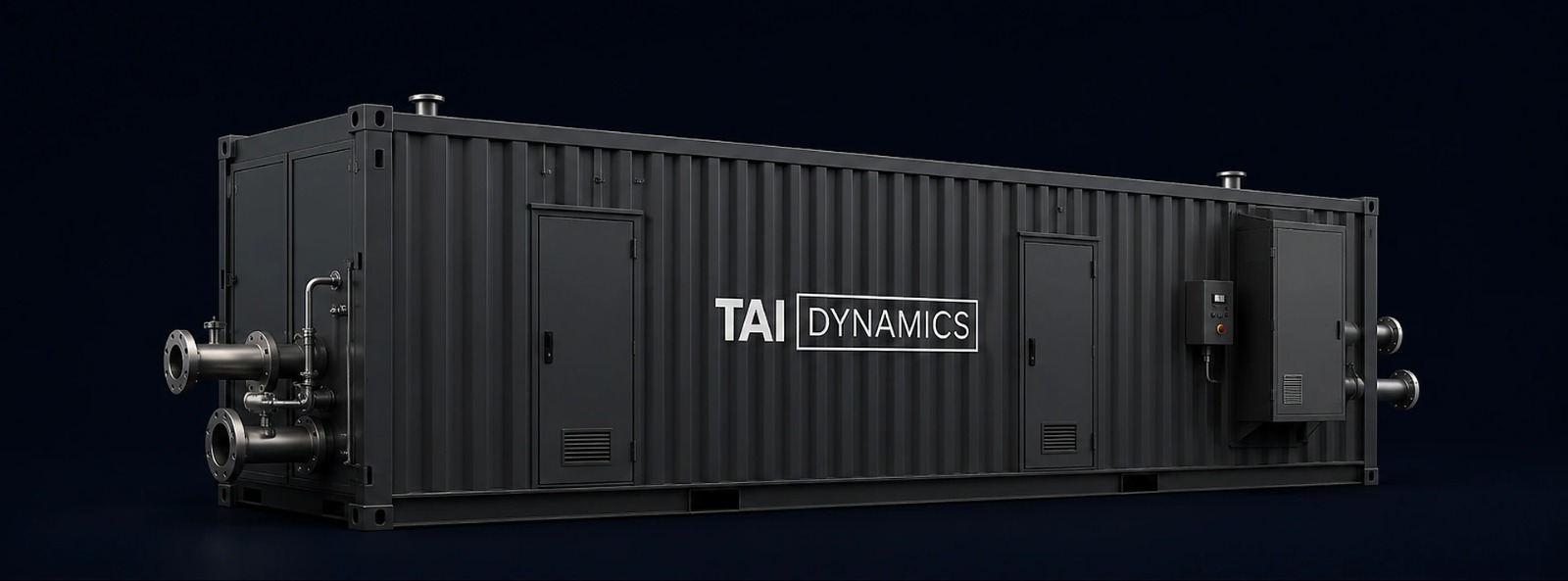

TES
Power-to-Heat

TES

Power-to-Heat Thermal Energy Storage

TAI Dynamics TES is a long-duration Power-to-Heat solution that stores electrical energy or recoverable heat directly as thermal energy. It can be charged from low-tariff grid electricity, solar or wind surplus, electric heaters, heat pumps or waste heat sources. Stored energy is delivered for hot water, process heat, drying, preheating, greenhouse and poultry heating, hotel hot water or HVAC support loads.

Technical Specifications
Operating Principle Power-to-Heat-to-Heat
Thermal RTE Up to 90% under defined project conditions
Operating Temperature -20°C to +500°C; optional design up to +800°C
Storage Duration Hours to days
Storage Media Water — up to 95°C; sand — up to 500°C; other solid media per project
Scale Modular and scalable per project requirements
Degradation None
Cycle Limit None
Design Life 20+ Years

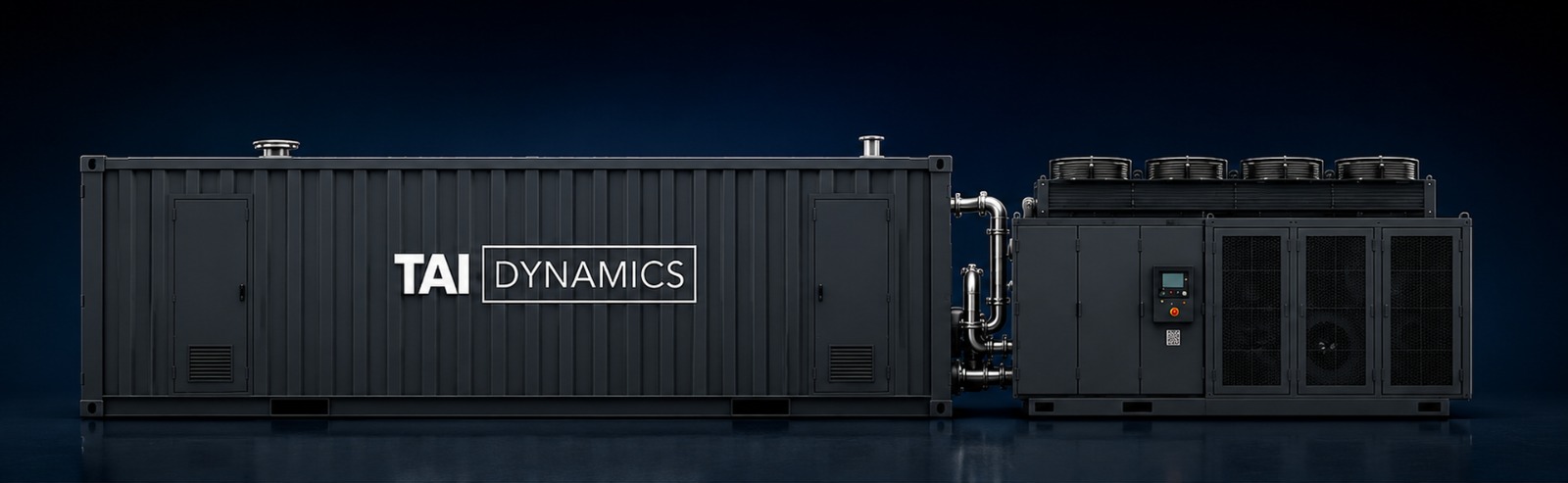

TEB
Power-to-Heat-to-Power

TEB

Long-Duration Thermoelectric Battery

TAI Dynamics TEB is a Power-to-Heat-to-Power platform that first stores electricity as thermal energy, then converts it back to electrical output via thermoelectric generators during discharge. It uses solid-state thermoelectric conversion instead of moving turbine equipment.

Technical Specifications
Operating Principle Power-to-Heat-to-Power
Target Electrical RTE Up to 75% in selected architectures
Thermal RTE Up to 90% under defined conditions
Operating Temperature -20°C to +300°C
Power Scale 1 kW – 100 MW+ target scalability
Energy Scale 1 MWh – 1000 MWh+ target scalability
Conversion Layer TEG modules, MPPT and power electronics
Degradation None
Cycle Limit None
Design Life 20+ Years

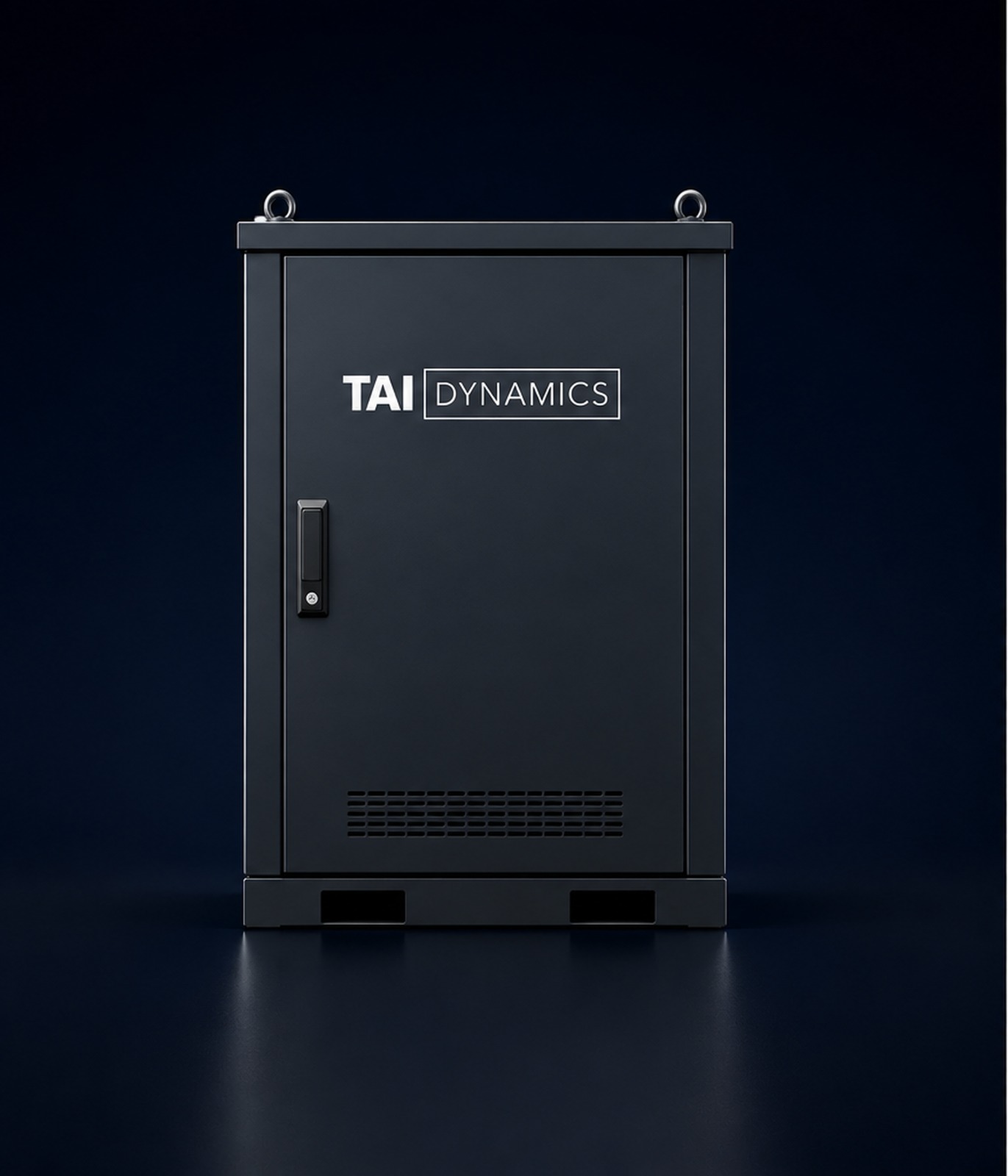

TES Mini
Compact

TES Mini

Compact Thermal Battery

TES Mini is a compact and modular 20 kWh thermal energy storage solution designed for homes, businesses, hotels, agricultural facilities, farms, social facilities, small industrial sites, hot-water applications and space heating. The system uses a coil-free thermal architecture. Depending on the selected storage medium and system configuration, the operating temperature can be configured up to 800°C. Its compact structure enables thermal energy to be stored close to the point of use without degradation.

Technical Specifications
Product Class Compact Power-to-Heat Thermal Battery
Thermal Energy Capacity 20 kWh
Heat Transfer Architecture Coil-Free Design
Operating Temperature Up to 800°C
Target Applications Hotels, restaurants, sports facilities, dormitories, business hot water and distributed heat support
Degradation None

Documents

Download approved technical datasheets, pilot briefs and public project summaries.

View Project Documents
